   Home > Products > Silicon carbide > Silicon Carbide 98.5

Silicon carbide

  • Silicon Carbide 98.5
  • Silicon Carbide 98.5
Silicon Carbide 98.5Silicon Carbide 98.5

Silicon Carbide 98.5

  • Product Item : CH018
  • Category: Silicon carbide
  • Views:494

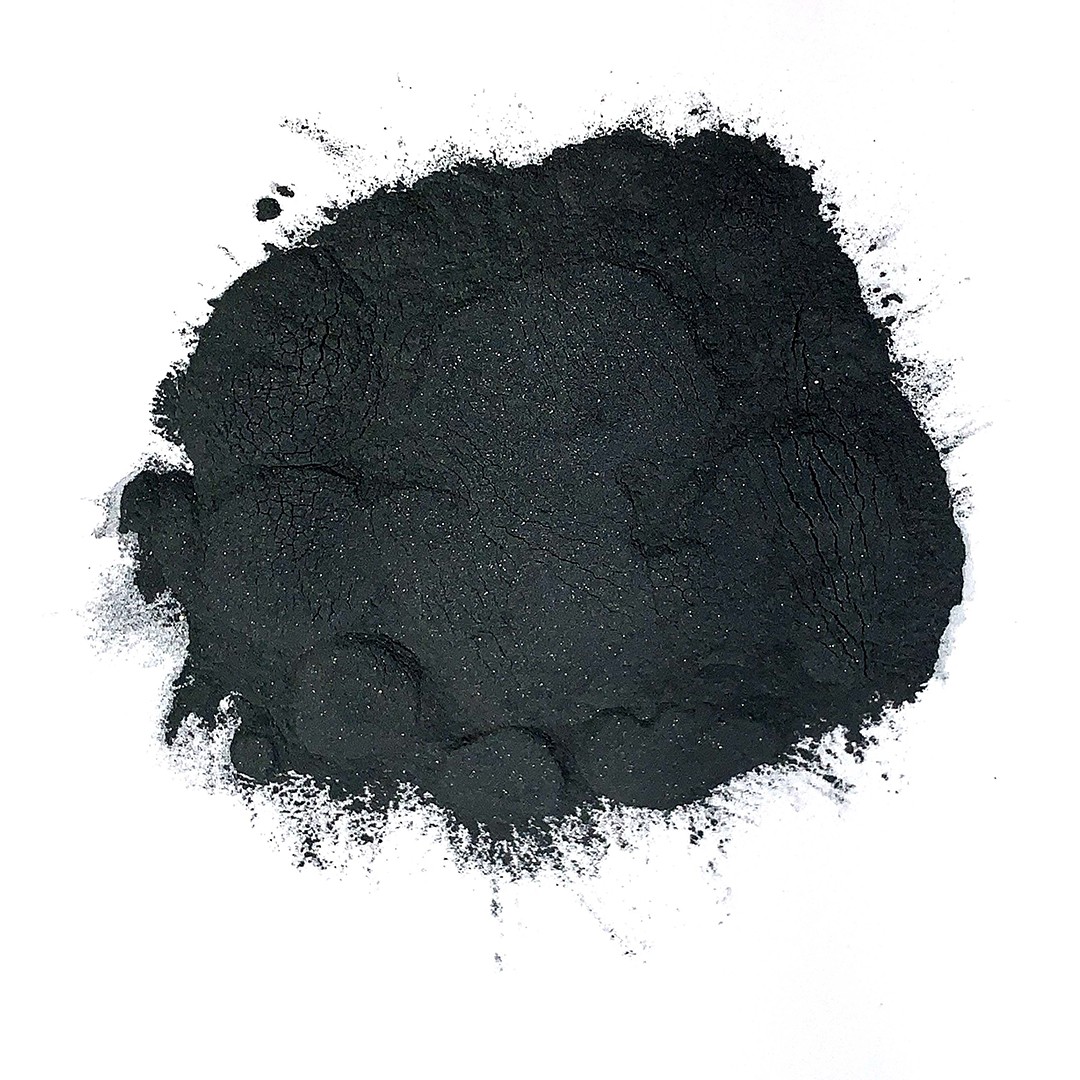

  • Black color
  • POWDER
  • Product description:Silicon carbide powder has great hardness, heat resistance, oxidation resistance, and corrosion resistance, and is generally used as a raw material for abrasives, refractory materials, electric heatin
  • INQUIRY

Silicon carbide (SiC) has become an important abrasive because of its great hardness, but its application range exceeds that of ordinary abrasives. For example, its high temperature resistance and thermal conductivity make it one of the preferred kiln furniture materials for tunnel kilns or shuttle kilns. Its electrical conductivity makes it an important electric heating element. The preparation of SiC products first requires the preparation of SiC smelting blocks [or called: SiC pellets, because they contain C and are super-hard, so SiC pellets were once called: emery. But pay attention: it has a different composition from natural emery (also known as: garnet). In industrial production, SiC smelting blocks usually use quartz, petroleum coke, etc. as raw materials, auxiliary recovery materials, waste materials, and are prepared through grinding and other processes to form a charge with a reasonable ratio and a suitable particle size (in order to adjust the permeability of the charge, an appropriate amount needs to be added Wood chips, the preparation of green silicon carbide must also add an appropriate amount of salt) prepared by high temperature. The thermal equipment for high-temperature preparation of SiC smelting blocks is a special silicon carbide electric furnace. Its structure consists of the bottom of the furnace, the end wall with electrodes on the inside, the detachable side wall, and the core body (full name: the energized heating body in the center of the electric furnace, generally Use graphite powder or petroleum coke to install in the center of the charge according to a certain shape and size, generally round or rectangular.

Specification :

Grade

Sic (%)

Fe2O3 (%)

C(%)

Moisture (%)

CaO(%)

MgO(%)

AL2O3(%)

Super Grade

98.5min

0.2max

0.2max

0.5max

0.02

0.02

0.03

1st Grade

97.5min

0.3max

0.6max

0.5max

0.05

0.05

0.05

2nd Grade

88-90

2.5max

3max

0.5max

1.5

1.5

2.5

3rd Grade

70-75

*

*

1max

*

*

*

Packing and size

As clients demands

Application range

Silicon carbide has four main application areas, namely: functional ceramics, advanced refractory materials, abrasives and metallurgical raw materials. Coarse silicon carbide materials can already be supplied in large quantities and cannot be regarded as high-tech products, and the application of nano-scale silicon carbide powders with extremely high technical content cannot form economies of scale in a short time.
